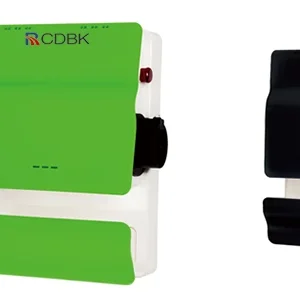

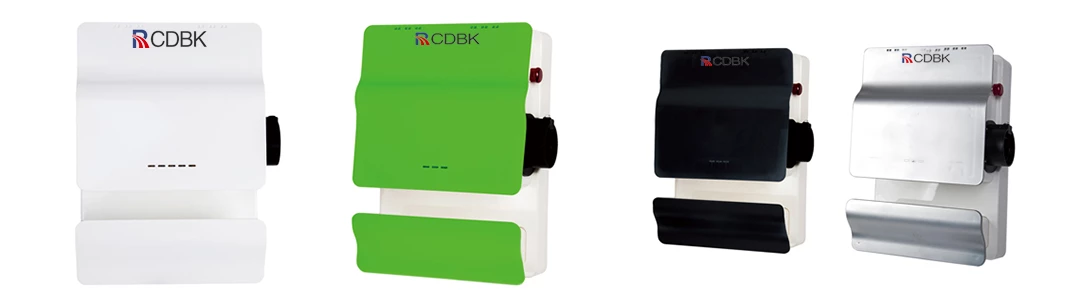

EV Charger of RB3 Model
EV charger RB3 Model allows you to charge your electric car in just a few hours while you sleep,work, enjoy a meal, or spend time with your family. A Mode 3/ level 2 charger safely delivers AC Power to your electric vehicle or plug-in hybrid so you’re always “fueled up” and ready to go.
RB3 Model is the safest and modular design device which replaces traditional charger with Type A or Type AC RCD/RCBO. It is integrated and built-in Type B RCCB, smart EV controller and Din contactor only, which is very popular for homes, communities, public places and workplaces. It enables to provide you safeand fast charging solution.
Applications of RB3 Model:
| Intelligent Controller | Triple-color LED indicetor status Optional current setting by Dip switch from 10 A to 32A |
| RCD protection | Built-in Type B RCCB 63A 30mA residual current protection |
| Quick Charge | Up to Max 21.6KW Charging Power |
| Outdoor Mounting | Rated IP55 protection |
| UV resistant plastic housing | |
| Operation temperature -40℃ to 55℃ | |

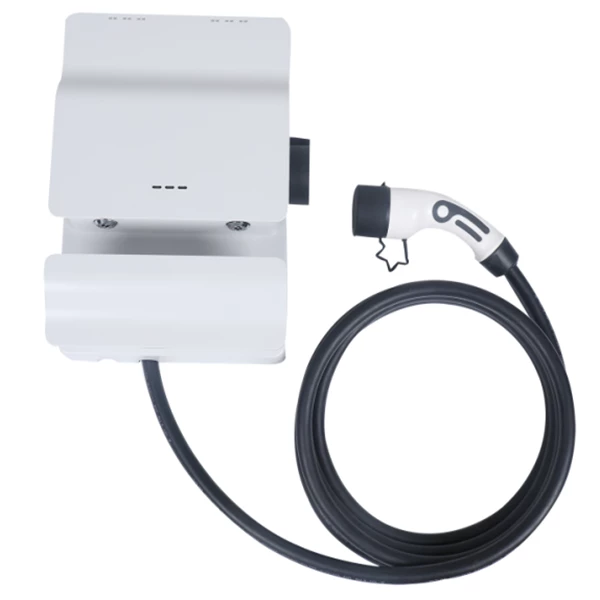

| Cable Spectfication | Charge cord length-5m tethered cable |
| 3×2.5mm2+2×0.75mm2,1 Phase | |
| 5×6mm2+2×0.75mm2,3 Phase |
Technical data of the ev charger
|
Model |
Specifification |
Charging Power |
Compliance standards |
|
RB3T2132 |
32A 240Vac Single phase, Type 2, c/w 5meter tethered cable |
3.7KW|7.2KW |
IEC/EN61851-1:2017 EN 61851-22:2002 IEC/EN61008-1:2015 IEC/EN 62423 for RCCB IEC 62196-1(Type 2) and J1772(Type 1)for plug IEC/EN 60947-4-1 for Din contactor
|
|
RB3T2332 |
32A 415Vac Three phase , Type 2, c/w 5 meter tethered cable |
11KW|22KW |
|
|
RB3T2232 |
16A 240Vac Single phase , Type 1, w/o cable untethered |
3.7KW|7.2KW |
|
|
RB3T2432 |
32A 240Vac Single phase , Type 1, w/o cable untethered |
11KW|22KW |
Specifications of the RB3 240v EV Charger
| Type | RB3T1132/RB3T2132 | RB3T2332 | RB3T2232 | RB3T2432 |
| AC Power | 1P+N+PE | 3P+N+PE | 1P+N+PE | 3P+N+PE |
| Power Voltage | AC230~±10% | AC400~±10% | AC230~±10% | AC400~±10% |
| Rated Current | 10~32A | 10~32A | 10~32A | 10~32A |
| Max.Power | 7.4KW | 22KW | 7.4KW | 22KW |
| Frequency | 50-60HZ | |||
| Cable Length | 5m | 5m | Socket | Socket |
| Sockets/Plugs | Type1/Type2 | Type2 | Type2 | Type2 |
| Weight | 5.6kg | 6.8kg | 3.45kg | 3.7kg |
| IP grade | IP55 | |||
| Working Temperature | -40ºC ~ 45ºC | |||
| Cooling Mode | Natural cooling | |||
