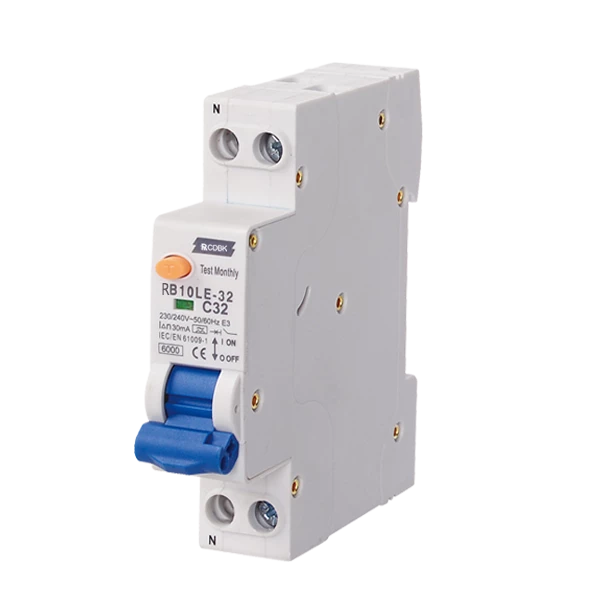

Description of 32 amp rcbo
Function:
Firstly, the RB10LE-32 series RCBO, a leading-edge 32 amp RCBO, is meticulously designed for AC 50Hz circuits. Operating at a voltage of 240V and boasting a current rating of up to 32A, it stands out in its efficiency and reliability. Furthermore, this RCBO acts with precision during instances of electric shocks or when grid leakages overshoot the prescribed thresholds.Beyond these essential features, this 32 amp RCBO is equipped to proficiently manage both overload and short circuit scenarios.
Application:
Specifically engineered for high-demand environments, the VB10LE-32 RCBO is, most importantly, optimal for both industrial and commercial lighting and distribution systems, showcasing unparalleled efficiency in these settings.
Conforms to Standard:
Lastly, aligned with the highest international benchmarks, it adheres strictly to the IEC/EN 61009-1 standard.
Main parameters of 32 amp rcbo（Form 1）
| TYPES | VALUES |
| Rated voltage (Un) | 240V AC |
| Rated current (In) | 6A, 10A, 16A, 20A, 25A, 32A,40A |
| Rated residual operated current (I△n) | 0.03A, 0.1A, 0.3A |
| Rated residual non-tripping current (I△no) | 0.5I△n |
| DC component | AC Type, A Type |
| Poles | 1P+N |
| Instant tipping type | B Type, C Type |
| Rated short circuit breaking capacity (Icn) | 6000A |
| Rated residual making and breaking capacity (I△m) | 500A |
| Breaking time of residual operated current | See Form 2 and 3 |
| Overcurrent protection properties | See Form 4, Diagram 1 and 2 |
| Mechanical and electrical life | See Form 5 |
| Connection wire | See Form 6 |
| Tightening torque | 1.5N.m |
| Nominal temperature ℃ | 30 |
| Operated ambient temperature ℃ | -25℃ to +40℃ |
| Stored ambient temperature ℃ | -25℃ to +70℃ |
| Pollution level | ２ |
| Protection level | IP20 |
| Mounting type | II |
AC type Breaking time of 32 amp rcbo（Form 2）
| Breaking time(s) when l equals to the below values | ||||||
| Type | In(A) | 1△n(A) | l△n | 2l△n | 5l△n | 0.25A,5A~200A,
500A |
| AC | 6~40 | 0.03,0.1,0.3 | 0.3 | 0.15 | 0.04 | 0.04 |
Breaking time of A type （Form 3）
| Type | In(A) | l△(A) | Breaking time(s) when l△ equals to the below values | ||||
| 1.4I△n | 2.8l△n | 7l△n | 0.35A | 350A | |||
| A | 6~40 | 0.03 | 0.3 | 0.15 | 0.04 | 0.04 | |
| 0.1,0.3 | 0.3 | 0.15 | 0.04 | 0.04 | |||
Overcurrent protection properties(nominal temperature 30°C )（Form 4）
| ITEM | TYPE | TEST CURRENT | INITIAL STATUS | TRIPPING OR NON TRIPPING TIME LIMIT | EXPECTED RESULT | REMARKS |
| a | B
C |
1.13In | Cold | t≤1h | Non tripping | |
| b | 1.45In | Test following the previous procedure; Process after test | t<1h | Trip | current increases to stipulated value within 5s | |
| c | 2.55In | Cold | 1s<t<60s(In≤32A)
1s<t<120s(In >32A) |
Trip | ||
| d | B
C |
3In
5In |
Cold | t≤0.1s | Non tripping | Connection of current by opening auxiliary switch |
| e | B
C |
3In
5In |
Cold | t≤0.1s | Trip | Connection of current by opening auxiliary switch |
Diagram 1 and 2
Mechanical and electrical life of 32 amp rcbo （Form 5）
| Category | Time | Operation Time (time/hour) |
| Mechanical life | 10000 | 240 |
| Electrical life | 2000 | 120 |
Connection wire of 32 amp rcbo（Form 6）
| RATED CURRENT IN(A) | SECTION AREA OF COPPER WIRE S (MM2) |
| 6 | 1.0 |
| 10 | 1.5 |
| 16, 20 | 2.5 |
| 25 | 4 |
| 32 | 6 |

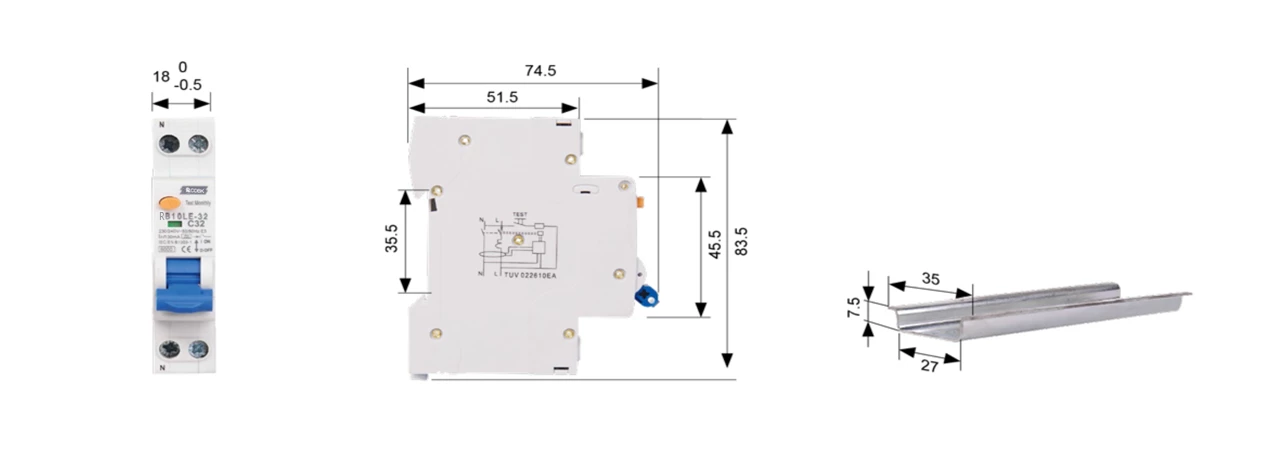

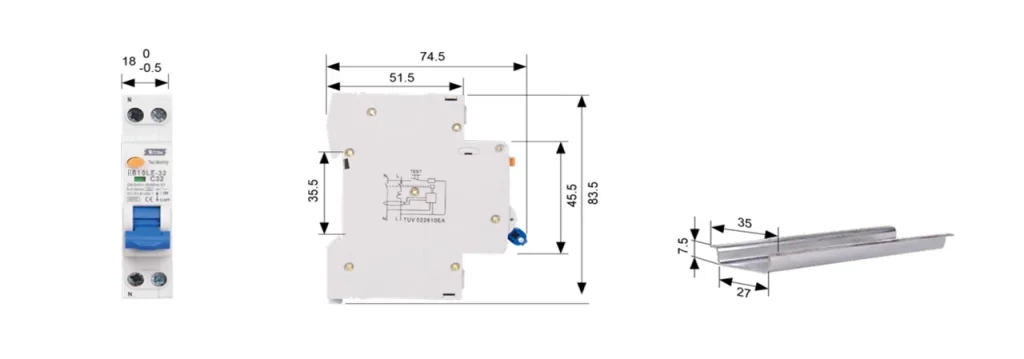

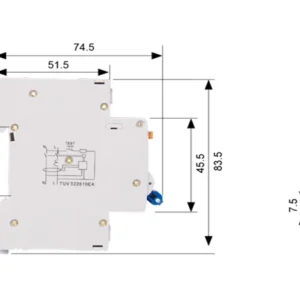

Overall and mounting sizes(mm)
