Performance characteristics:
1.High saturation magnetic induction intensity, the saturation magnetic induction of iron-basednanocrystalline alloy is three times that of ferrite, the same volume of iron core is 2 timeslarger than that of ferrite, and has greater overload resistance.
2.High magnetic permeability, low coercivity – improve transformer efficiency, reduce excitationpower, reduce copper loss, magnetic permeability is more than 10 times that of ferrite
3.Low loss – reduce the temperature rise of the transformer, the core loss in the frequency rangeof 20KHZ-50KHZ is 1/2-1/5 of the ferrite loss
4.Excellent temperature stability-can be reduced to minus 55-130C
Application

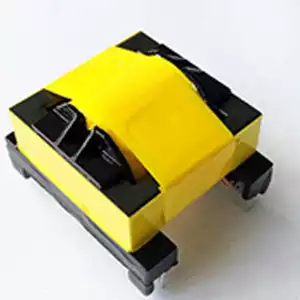

Transformer Substation measurement and over-current protectionCurrent transformer for electricity meter and power transmitter

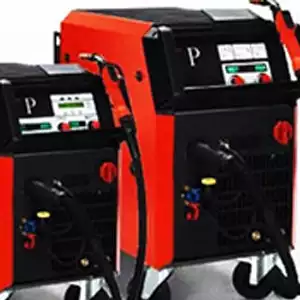

Inverter welding machine

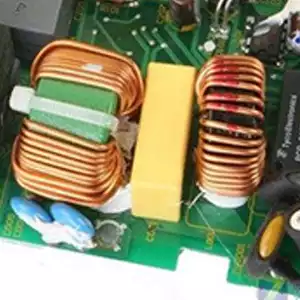

filter
Power field

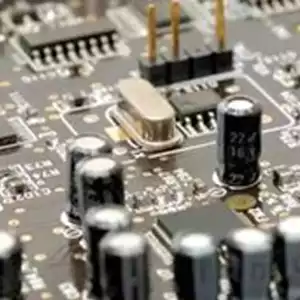

Electromagnetic Compatibility

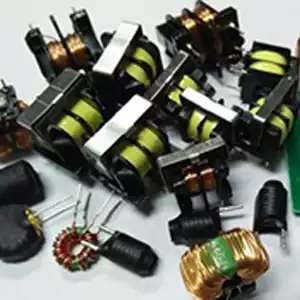

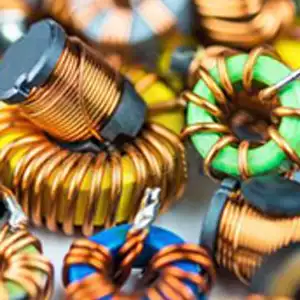

inductor
high frequency variator
SHIELDING AND ANTI-INTERFERENCE

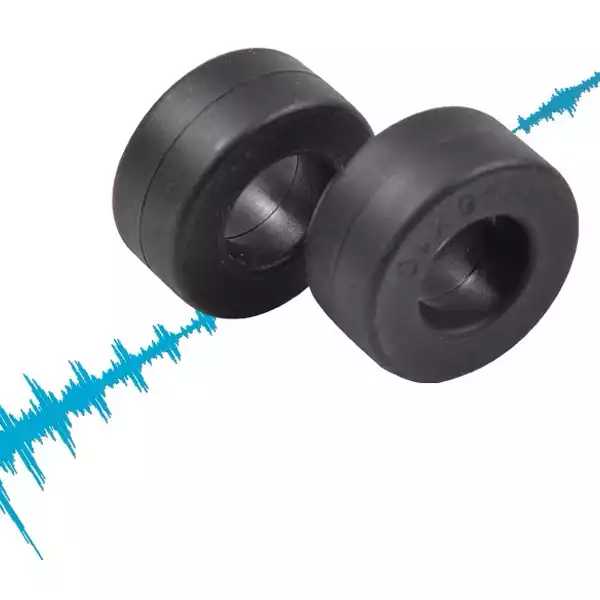

Can effectively suppress EMI interferenceIsolate or filter out high-frequency noise pulse interference
Manufacturers of amorphous magnetic cores utilize advanced manufacturing techniques to ensure precise core geometry and consistent magnetic properties. These cores are available in various shapes and sizes to accommodate different design requirements. Additionally, manufacturers offer customization options to meet specific application needs.

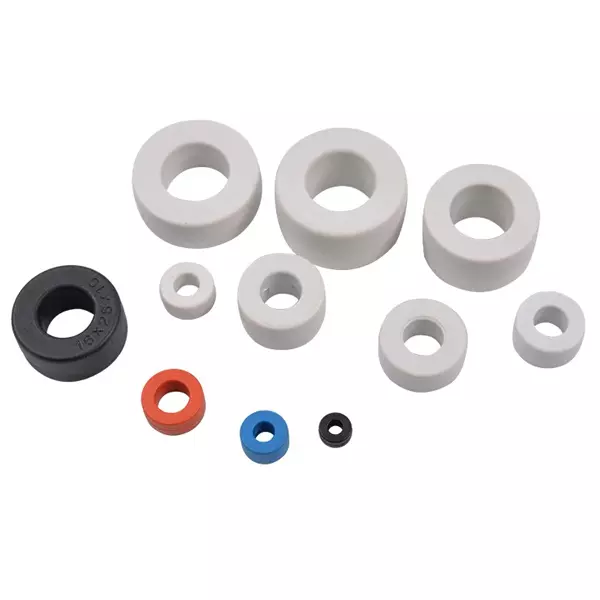

The Amorphous Magnetic Cores in stock
Inside of nanocrystalline core
Outside of nanocrystalline core
Nanocrystalline magnetic core
