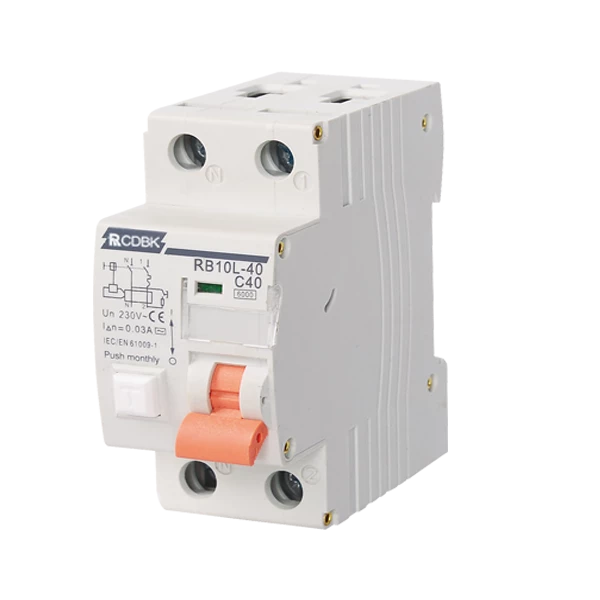

Description of rc bo breaker
The RB10L-40 series RCBO is designed for AC 50Hz circuits with a rated voltage of 240V and a current rating of up to 40A. If a human experiences an electric shock or if the grid’s current or voltage surpasses the set values, the rc bo actively disconnects the faulty power quickly. This action ensures the safety of both humans and electrical equipment. Moreover, the rc bo can protect against overload and short circuits. Furthermore, it can toggle the electrical facilities and lighting circuits on and off as long as the circuit operates properly.
Designed for the lighting and distribution systems of industries and commercial setups, it strictly complies with the IEC/EN 61009-1 standard
Main parameters of RC BO（Form 1）
| TYPES | VALUES |
| Rated voltage (Un) | 240V AC |
| Rated current (In) | 6A, 10A, 16A, 20A, 25A, 32A,40A |
| Rated residual operated current (I△n) | 0.03A, 0.1A, 0.3A |
| Rated residual non-tripping current (I△no) | 0.5I△n |
| DC component | AC Type, A Type |
| Poles | 1P+N |
| Instant tipping type | B Type, C Type |
| Rated short circuit breaking capacity (Icn) | 6000A |
| Rated residual making and breaking capacity (I△m) | 500A |
| Breaking time of residual operated current | See Form 2 and 3 |
| Overcurrent protection properties | See Form 4, Diagram 1 and 2 |
| Mechanical and electrical life | See Form 5 |
| Connection wire | See Form 6 |
| Tightening torque | 1.5N.m |
| Nominal temperature ℃ | 30 |
| Operated ambient temperature ℃ | -25℃ to +40℃ |
| Stored ambient temperature ℃ | -25℃ to +70℃ |
| Pollution level | ２ |
| Protection level | IP20 |
| Mounting type | II |
AC type Breaking time of rc bo breaker （Form 2）
| Breaking time(s) when l equals to the below values | ||||||
| Type | In(A) | 1△n(A) | l△n | 2l△n | 5l△n | 0.25A,5A~200A,
500A |
| AC | 6~40 | 0.03,0.1,0.3 | 0.3 | 0.15 | 0.04 | 0.04 |
Breaking time of A type （Form 3）
| Type | In(A) | l△(A) | Breaking time(s) when l△ equals to the below values | ||||
| 1.4I△n | 2.8l△n | 7l△n | 0.35A | 350A | |||
| A | 6~40 | 0.03 | 0.3 | 0.15 | 0.04 | 0.04 | |
| 0.1,0.3 | 0.3 | 0.15 | 0.04 | 0.04 | |||
Overcurrent protection properties(nominal temperature 30°C )（Form 4）
| ITEM | TYPE | TEST CURRENT | INITIAL STATUS | TRIPPING OR NON TRIPPING TIME LIMIT | EXPECTED RESULT | REMARKS |
| a | B
C |
1.13In | Cold | t≤1h | Non tripping | |
| b | 1.45In | Test following the previous procedure; Process after test | t<1h | Trip | current increases to stipulated value within 5s | |
| c | 2.55In | Cold | 1s<t<60s(In≤32A)
1s<t<120s(In >32A) |
Trip | ||
| d | B
C |
3In
5In |
Cold | t≤0.1s | Non tripping | Connection of current by opening auxiliary switch |
| e | B
C |
3In
5In |
Cold | t≤0.1s | Trip | Connection of current by opening auxiliary switch |
Diagram 1 and 2
Mechanical and electrical life of rcbo breaker （Form 5）
| Category | Time | Operation Time (time/hour) |
| Mechanical life | 10000 | 240 |
| Electrical life | 2000 | 120 |
Connection wire of rc bo （Form 6）
| RATED CURRENT IN(A) | SECTION AREA OF COPPER WIRE S (MM2) |
| 6 | 1.0 |
| 10 | 1.5 |
| 16, 20 | 2.5 |
| 25 | 4 |
| 32 | 6 |

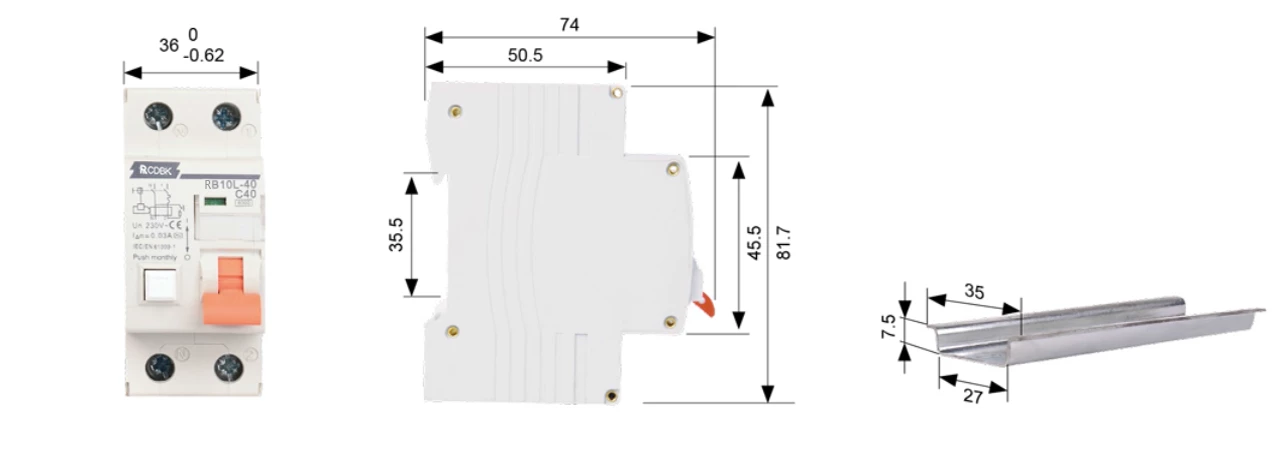

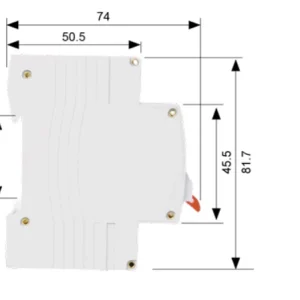

Overall and mounting sizes(mm)
