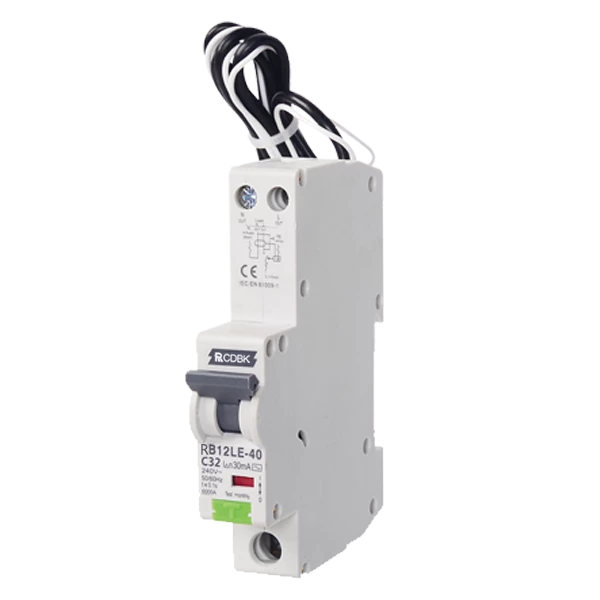

Description of rcbo breaker
The rcbo breaker designed for AC circuits of 50Hz and rated voltage 240V, the RB12LE-40 series RCBO caters to current demands up to 40A. It safeguards human lives and electrical equipment by swiftly cutting off power in case of electric shock or when grid leakage or voltage exceeds certain values. Furthermore, it provides protection against overload and short circuits. In addition, it can effectively handle non-frequent switching of electrical appliances and lighting circuits under normal working conditions.
Designed for the lighting and distribution systems of industries and commercial setups, it strictly complies with the IEC/EN 61009-1 standard
Main parameters （Form 1）
| TYPES | VALUES |
| Rated voltage (Un) | 240V AC |
| Rated current (In) | 6A, 10A, 16A, 20A, 25A, 32A,40A |
| Rated residual operated current (I△n) | 0.03A, 0.1A, 0.3A |
| Rated residual non-tripping current (I△no) | 0.5I△n |
| DC component | AC Type, A Type |
| Poles | 1P+N |
| Instant tipping type | B Type, C Type |
| Rated short circuit breaking capacity (Icn) | 6000A |
| Rated residual making and breaking capacity (I△m) | 500A |
| Breaking time of residual operated current | See Form 2 and 3 |
| Overcurrent protection properties | See Form 4, Diagram 1 and 2 |
| Mechanical and electrical life | See Form 5 |
| Connection wire | See Form 6 |
| Tightening torque | 1.5N.m |
| Nominal temperature ℃ | 30 |
| Operated ambient temperature ℃ | -25℃ to +40℃ |
| Stored ambient temperature ℃ | -25℃ to +70℃ |
| Pollution level | ２ |
| Protection level | IP20 |
| Mounting type | II |
AC type Breaking time of rcbo breaker （Form 2）
| Breaking time(s) when l equals to the below values | ||||||
| Type | In(A) | 1△n(A) | l△n | 2l△n | 5l△n | 0.25A,5A~200A,
500A |
| AC | 6~40 | 0.03,0.1,0.3 | 0.3 | 0.15 | 0.04 | 0.04 |
Breaking time of A type （Form 3）
| Type | In(A) | l△(A) | Breaking time(s) when l△ equals to the below values | ||||
| 1.4I△n | 2.8l△n | 7l△n | 0.35A | 350A | |||
| A | 6~40 | 0.03 | 0.3 | 0.15 | 0.04 | 0.04 | |
| 0.1,0.3 | 0.3 | 0.15 | 0.04 | 0.04 | |||
Overcurrent protection properties(nominal temperature 30°C )（Form 4）
| ITEM | TYPE | TEST CURRENT | INITIAL STATUS | TRIPPING OR NON TRIPPING TIME LIMIT | EXPECTED RESULT | REMARKS |
| a | B
C |
1.13In | Cold | t≤1h | Non tripping | |
| b | 1.45In | Test following the previous procedure; Process after test | t<1h | Trip | current increases to stipulated value within 5s | |
| c | 2.55In | Cold | 1s<t<60s(In≤32A)
1s<t<120s(In >32A) |
Trip | ||
| d | B
C |
3In
5In |
Cold | t≤0.1s | Non tripping | Connection of current by opening auxiliary switch |
| e | B
C |
3In
5In |
Cold | t≤0.1s | Trip | Connection of current by opening auxiliary switch |
Diagram 1 and 2
Mechanical and electrical life of rcbo breaker （Form 5）
| Category | Time | Operation Time (time/hour) |
| Mechanical life | 10000 | 240 |
| Electrical life | 2000 | 120 |
Connection wire （Form 6）
| RATED CURRENT IN(A) | SECTION AREA OF COPPER WIRE S (MM2) |
| 6 | 1.0 |
| 10 | 1.5 |
| 16, 20 | 2.5 |
| 25 | 4 |
| 32 | 6 |

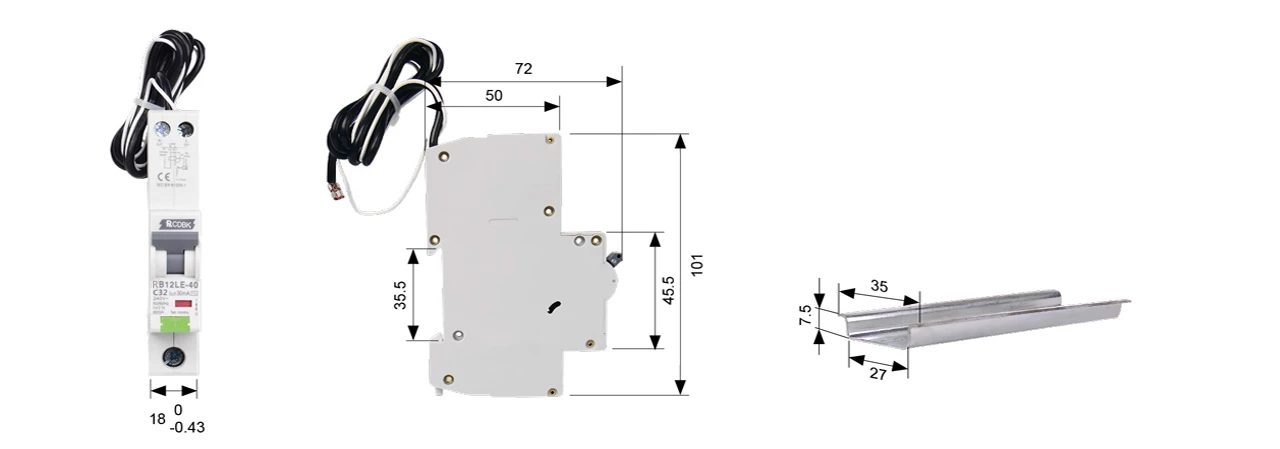

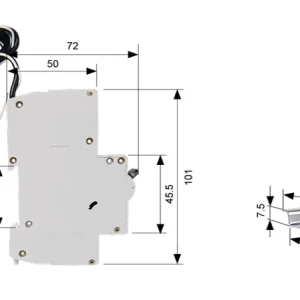

Overall and mounting sizes(mm)
