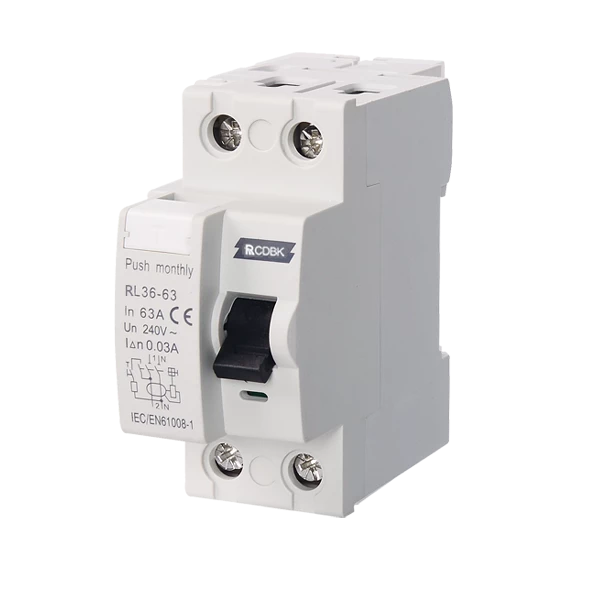

Types of the RL36-63 RCCB |
Values of the rccb 2 pole |
| Rated voltage Un | 240V～1P+N, 415V～3P+N |
| Rated current In | 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Rated residual operated current I△n | 0.03A, 0.1A, 0.3A |
| Poles of VL36-63 RCCB | 1P+N, 3P+N |
| Duty type as per DC component | AC, A |
| Rated limited short circuit current Inc | 6000A |
| Rated limited residual short circuit current I△c | 6000A |
| Rated making and breaking capacity Im | 500A (In≤50A), 630A (In=63A) |
| Rated residual making and breaking capacity I△m | 500A (In≤50A), 630A (In=63A) |
| Rated residual non-operated current I△n | 0.5I△n |
| Rated insulation voltage Ui | 500V |
| Rated impulse withstand voltage Uimp | 4000V |
| Tightening torque | 3.0N.m |
| Electrical life of the rccb breaker | 1000 Times |
| Mechanical life | 2000 Times |
| Operated ambient temperature | -25℃ to +40℃ |
| Stored ambient temperature | -25℃ to +70℃ |
| Pollution level | 2 |
| Protection level | IP20 |
| Mounting type of the rccb breaker | Ⅱ |

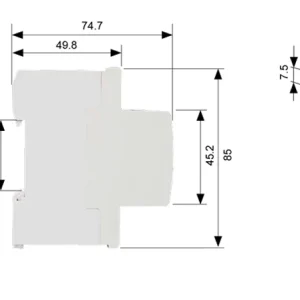

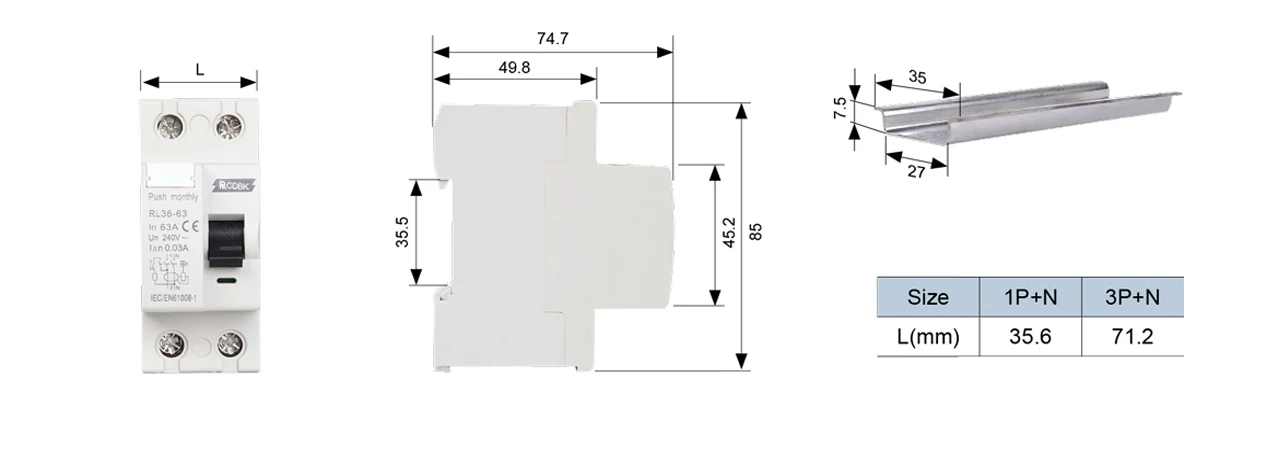

Overall and mounting sizes(mm）
Application of the rccb 2 pole
Firstly, The rccb 2 pole circuit breaker, also known as the double pole rcd , 2 Pole residual current circuit breaker, plays a vital role in ensuring electrical safety and against electrical hazards, specifically, earth leakage and electrical shock.
Secondly, it finds extensive application in various settings, including residential, commercial, and industrial environments. In homes, the 2 pole RCCB acts swiftly to detect and disconnect power in the event of leakage currents.
This proactive measure effectively prevents electric shocks and potential fires. The rccb 2 pole serves as an essential tool in single-phase supplies, which exclusively include a neutral wire and a live wire. The two ends of the RCCB are designed to connect directly with the neutral wire and live wire.
Above all, the rccb Conforms to standard: IEC/EN 61008-1
