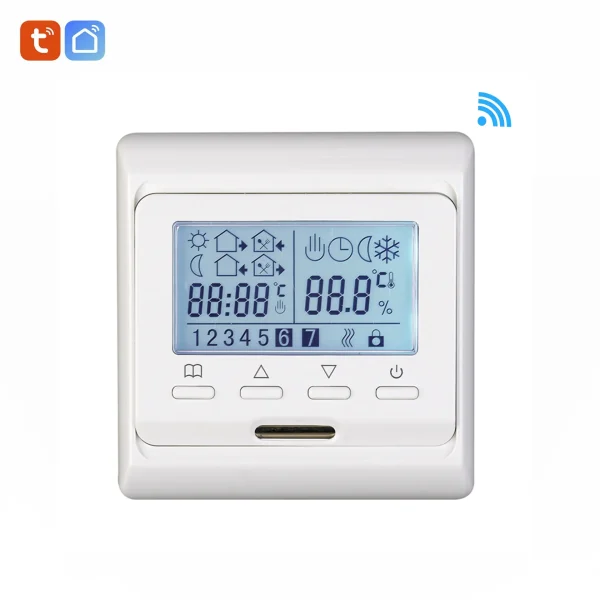

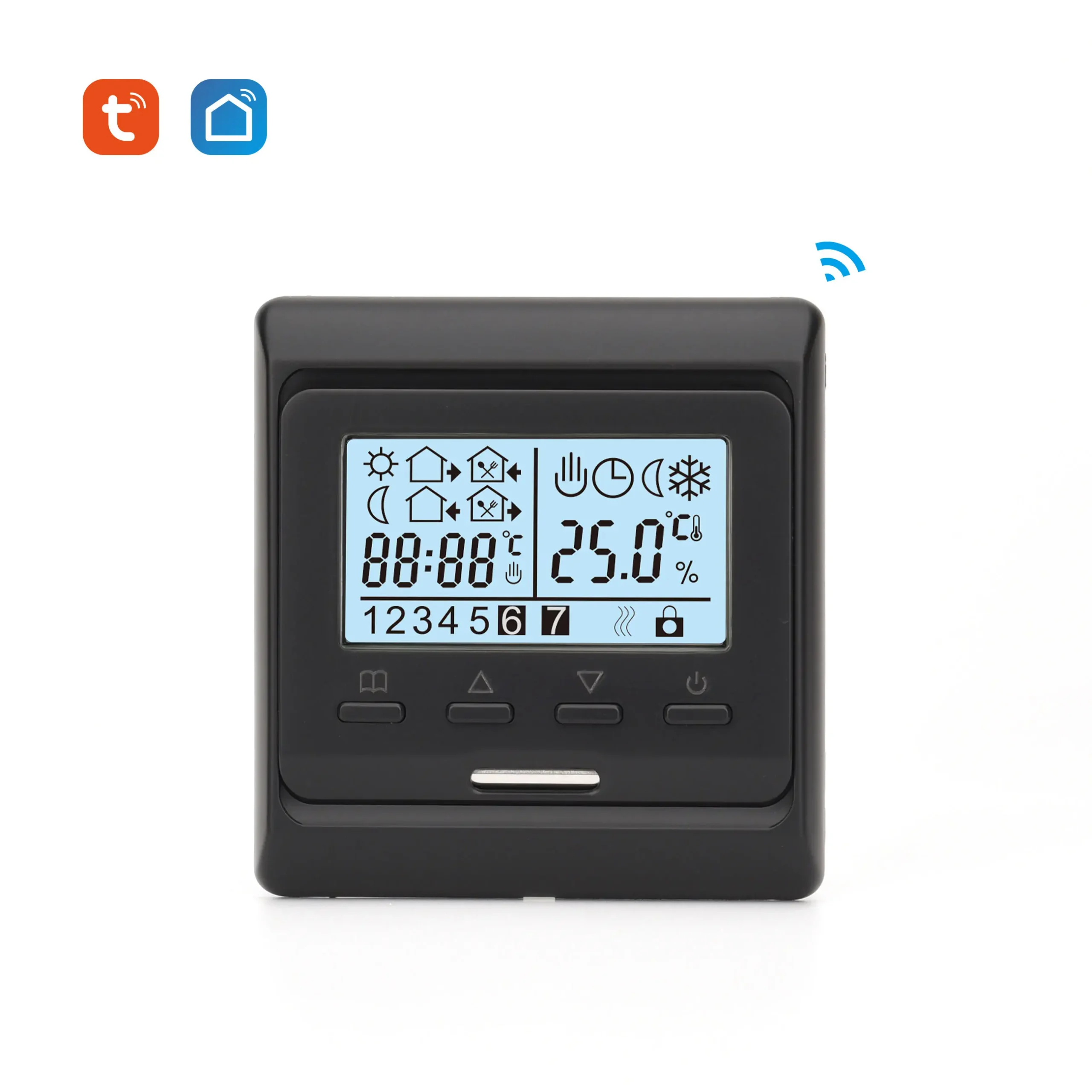

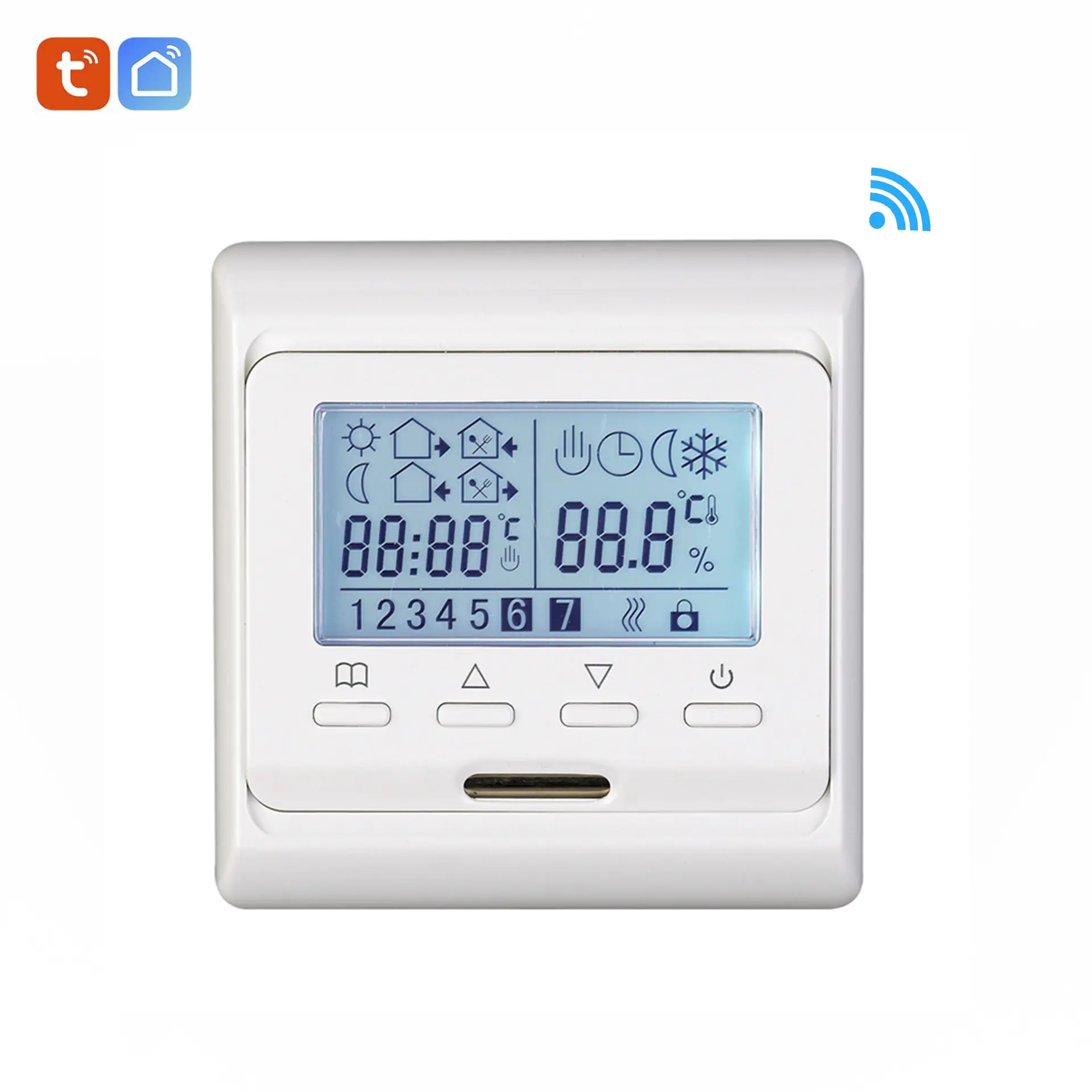

Smart Thermostat
Weekly circulation digital programming thermostat with LCD screen has 6 events everyday. Manual mode and programmemode could be selected.The thermostat is recommended for controof electric heating devices or on/off valve actuator used in hydronic floor heating.
Technical data of the smart thermostat
| Material | Anti-flammable PC +ABS |
| Display Temperature Range | 5~90℃ |
| External limitation | 5…60°C(Factory setting:35°C) |
| Switch differential | 0.5-10°Cadjustabie(Factory setting::1°C) |
| Power comsumption | 2W |
| WIFI controller | iOS/ Android |
| Voltage | 220V / 230V |
| Maximum load | 16A |
| Certificate | CE/RoHS |
| Protective housing | IP20 |
| Housing material | Anti-flammable PC |
| Warranty | 2 years |
Application
For the controlof warm-water (floor) heating systems and directelectric heating systems used in Commercial buildings,Residential buildings, Light industrial buildings…

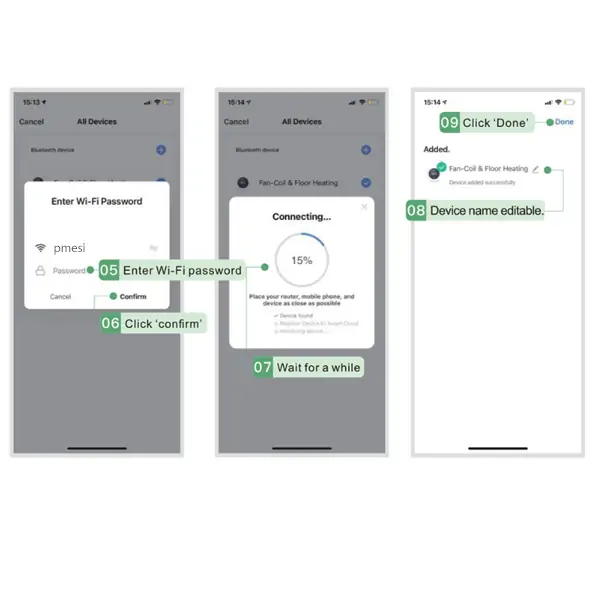

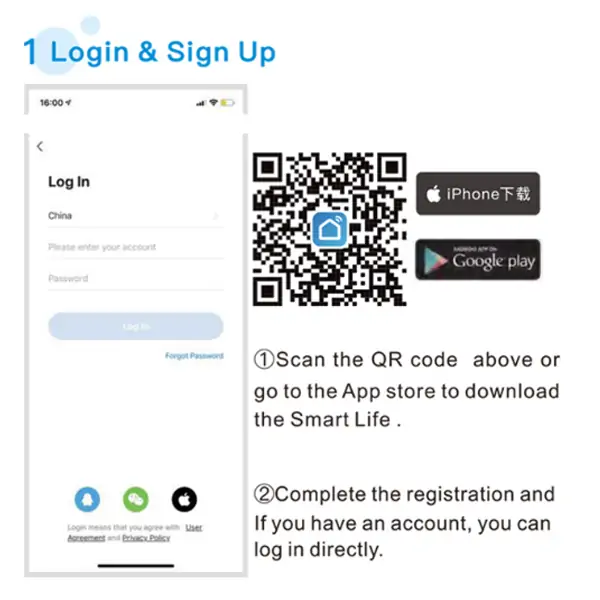

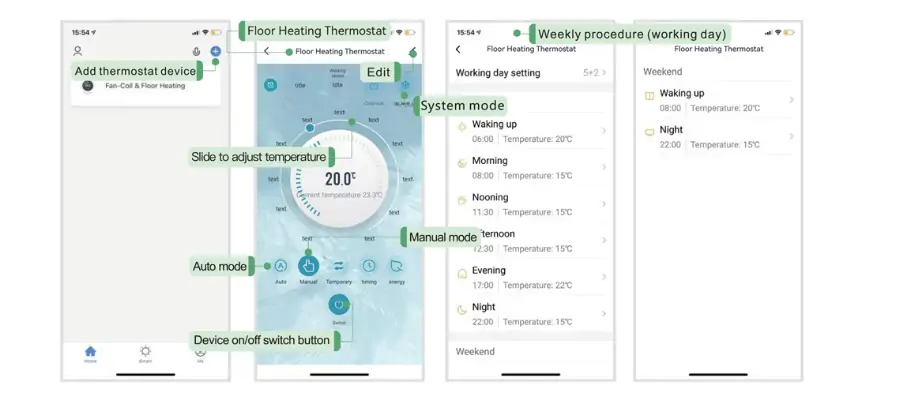

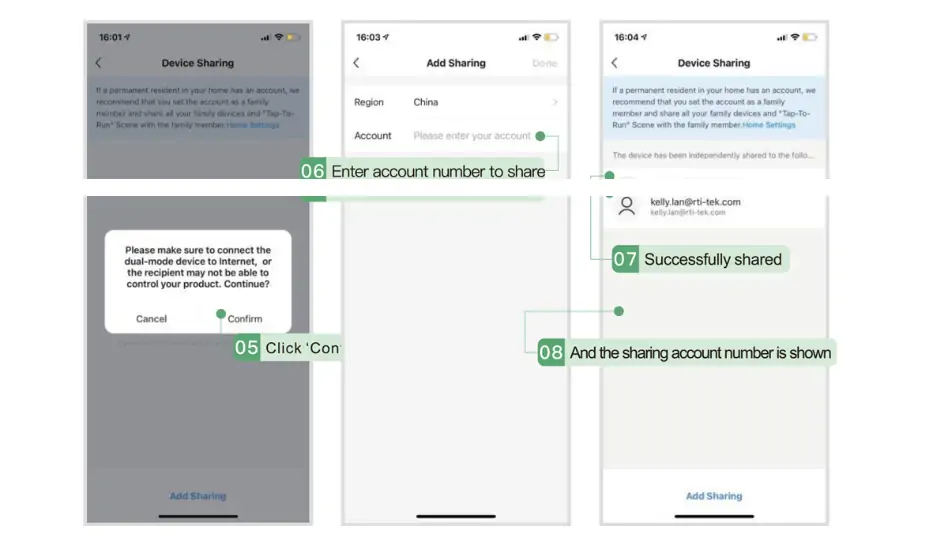

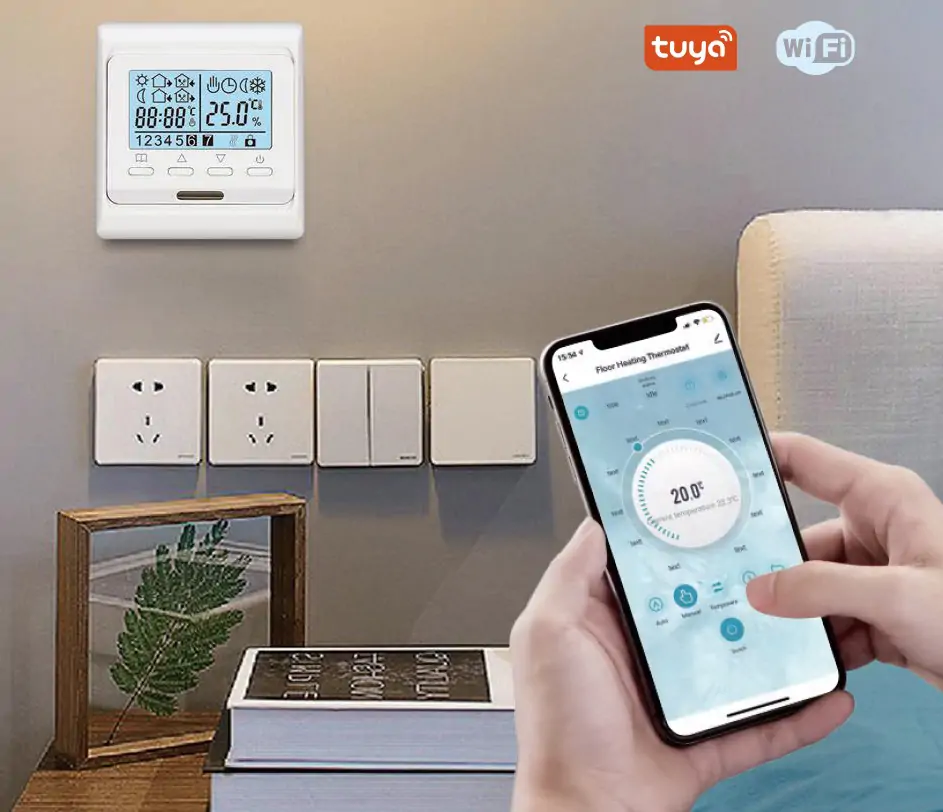

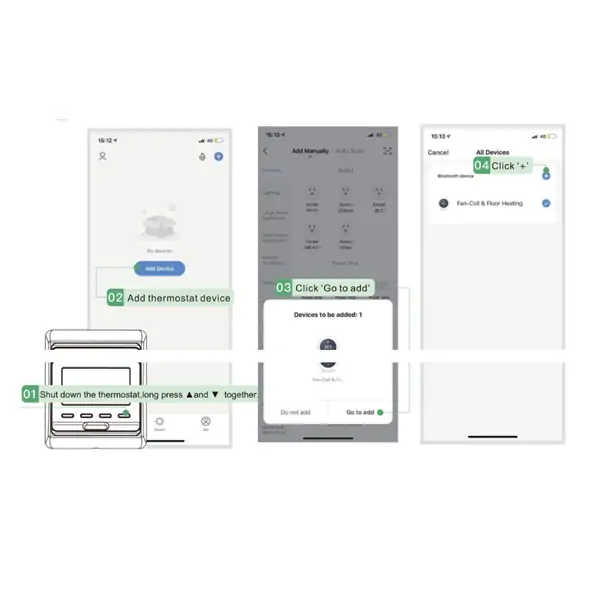

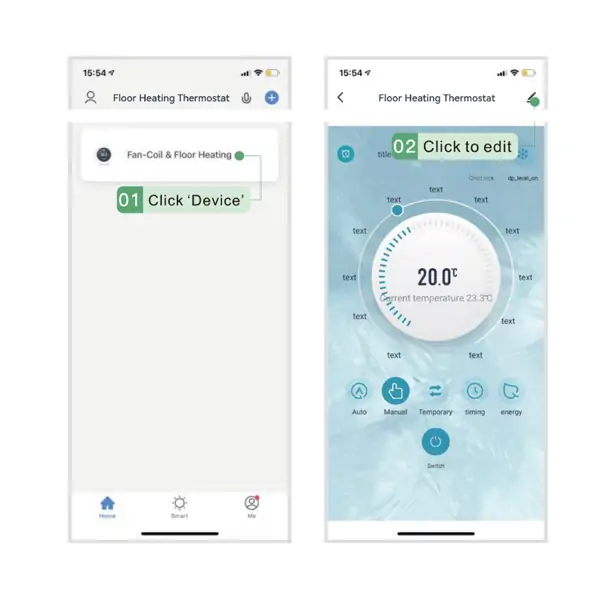

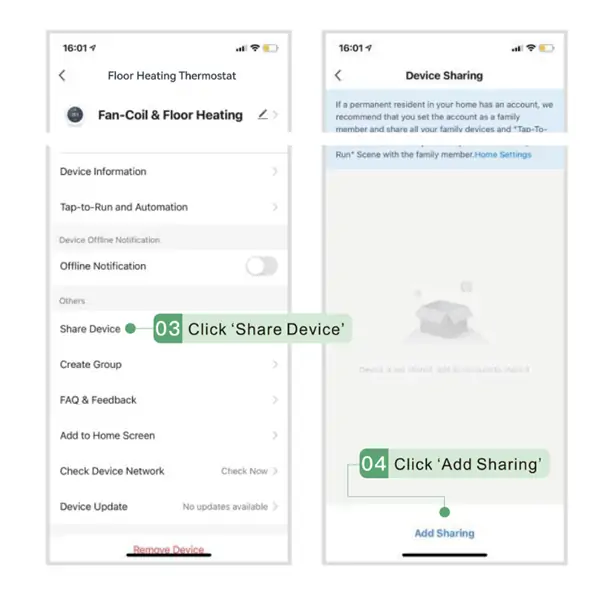

How to control the smart thermostat by APP
Show you step by step

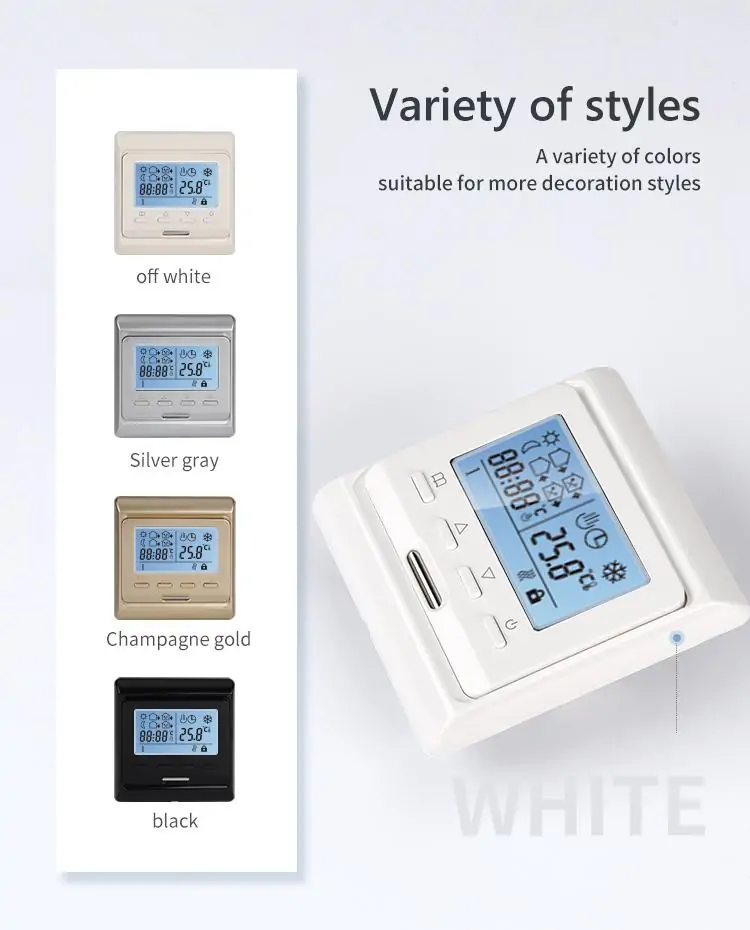

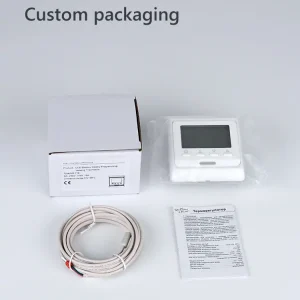

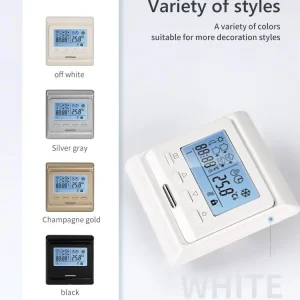

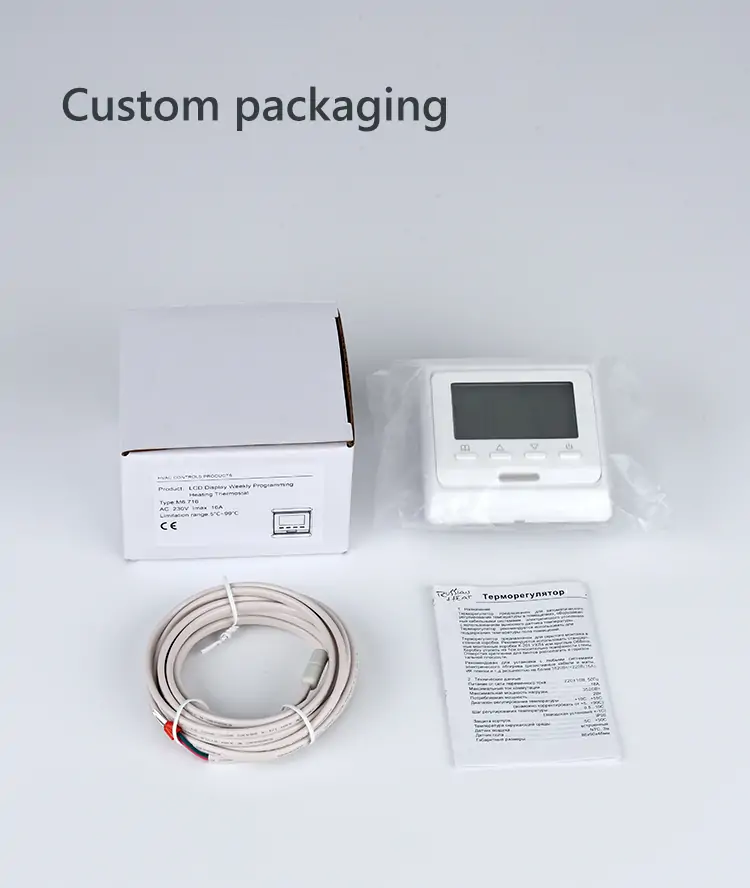

Customize your smart thermostat
We are the company in China ,who can provide OEM / ODM. We can design the solution of floor heating and cooling system for you.
