What is an rcd:
Residual Current Devices (Rcds also know as ELCB, RCCB ) are vital safety devices in the electrical world. In other words, a RCD plays a crucial role in protecting individuals from the risks of electric shock and electrical fires.
We will introduce the working principle of this device, its importance in ensuring electrical safety, and its various applications.
By understanding the fundamentals of RCDs, readers can appreciate the importance of incorporating them into electrical installations.
What is rcd in electrical :
At its core, a RCD is a sensitive safety device that automatically switches off electricity if it detects a fault. Rcd breaker provides protection against the risks of electrocution and fire caused by earth faults. Earth faults occur when the electrical current takes an unintended path. For example, if someone comes into contact with a live electrical component or when a faulty appliance causes electric current to flow into the ground.
Rcd circuit constantly monitor the electric current flowing through the circuits they protect. They quickly respond to any abnormal activity by tripping the circuit, thus reducing the risk of death or serious injury. The speed of RCD reacts is crucial in preventing fatal electric shocks.
We express RCD sensitivity as the rated residual operating current, or I(Δn). The International Electrotechnical Commission (IEC) has defined preferred values. These values allow us to categorize RCDs into three groups based on their I(Δn) value.
Firstly: high sensitivity (HS). This includes RCDs with I(Δn) values of 5, 10, or 30 mA. We use these for direct-contact or life injury protection.
Secondly: medium sensitivity (MS). This includes RCDs with I(Δn) values of 100, 300, 500, or 1000 mA. We use these for fire protection.
Thirdly: low sensitivity (LS). This includes RCDs with I(Δn) values of 3, 10, or 30 A. We typically use these for machine protection.

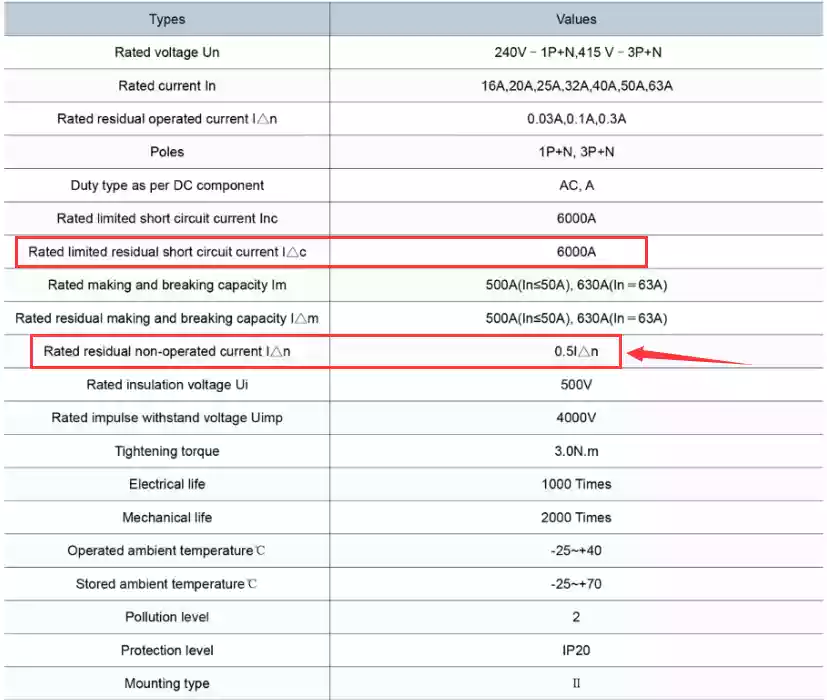

Different rcd wholesale can provide different I(Δn) value rcd breaker. You can check the Technical data in description of product.
For domestic:
There are three main types of rcd circuit breaker.
AC Type RCDs trip when there is sinusoidal residual current.
A Type RCDs, in addition to AC type, also detect pulsating or continuous direct current of any polarity.
B Type RCDs, build upon Type A’s features. They respond to steady DC and higher frequency current and combinations of alternating and direct current. They are used in single-phase or multi-phase rectifying circuits, such as those found in switching power supplies and appliances like washing machines with DC motors.
In short, type AC RCD is widely used in family. Moreover, there are some other type RCDs. They depend on specific requirements and local regulations.
Protection:
RCD play a very important role in ensuring electrical safety for both residential and commercial applications.
The breaker swiftly cuts off power, reducing electric shock and fire risk.RCD circuit interrupt current flow within milliseconds, protecting people and property. They ensure swift power cutoff for safety from electrical faults.
RCDs find widespread application in various settings. They are often found in places with potential electrical dangers, like bathrooms, kitchens, gardens, and construction sites.
Rcd controlled circuit is also crucial in protecting equipment that operates in wet conditions, such as water heaters and pumps. Additionally, the rcd plays a significant role in electrical installations in public places, ensuring the safety of individuals in these environments.
Conclusion:
Residual Current Devices (RCDs) are indispensable safety devices that protect against the risks of electric shock and electrical fires. By promptly detecting electrical imbalances and cutting off power, RCDBK RCDs save lives and prevent property damage. Whether in residential, commercial, or public settings, the incorporation of RCDs is essential for ensuring electrical safety. By understanding what is residual current, what type rcd for domestic and what is an rcd used for can make informed decisions. People prioritize safety and use rcd breaker to protect themselves and others from electrical hazards. So, remember to consider the inclusion of RCDs in your electrical systems and stay protected.
